Product Overview
KASI supplies the HeatView digital temperature controller for rent and sale across Canada and Alberta, offering precise, configurable, and portable control for industrial heating applications. Built into a rugged plastic case, the 24-way stand-alone controller provides maximum flexibility for heat treatment cycles, welding, and process heating.
The HeatView temperature controller is designed for flexibility and ease of use, making it the perfect solution for managing complex heating operations. The 24-way system allows operators to control up to four 6-channel consoles or one 24-channel console from a single unit.
Each channel is independently monitored and controlled, with high configurability to suit custom heating cycles. The system can be operated either through its built-in 7” touch screen interface or remotely via a computer interface.
Key Features:
- 24-Way Stand-Alone Controller: Can manage up to 4×6 channel consoles or one 24 channel console.

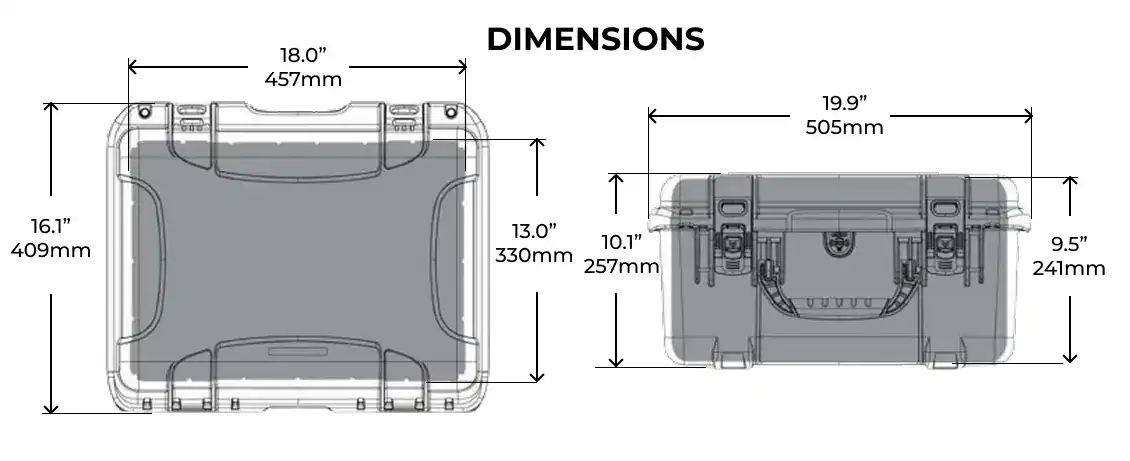

- Portability: Built into a rugged plastic case for durability and easy relocation.
- Flexible Channel Control: Not all channels need to be connected to operate.
- Individual Monitoring: Each channel is independently monitored and controlled.
- Configurable: Highly customizable to suit complex heating cycles.
- Control Options: Operate via built-in 7” touch screen or PC interface.
Electrical Specifications
| Item | Value | Unit |
|---|---|---|
| Input Voltage | 100–130 | Vac |
| Input Current | 1 (max) | A |
| Input Phase | 1 | |
| Input Frequency | 50–60 | Hz |
| Console’s contactor coil voltage MAX | 120 | Vac |
| Console’s contactor coil current MAX | 400 | mA |
Environmental Specifications
| Item | Value | Unit |
|---|---|---|
| Max Operating Temperature (Closed Lid) | 28 | °C |
| Max Operating Temperature (Open Lid) | 35 | °C |
| Never operate in direct sunlight on hot days! | ||
| IP Rating | 20 | |
Control Specifications
| Item | ConPak | |||
|---|---|---|---|---|
| 6 | 12 | 18 | 24 | |
| Max Control Channels | 6 | 12 | 18 | 24 |
| Standard number of Thermocouple inputs | 6 | 12 | 18 | 24 |
| Max number of Thermocouple inputs (Needs to be factory installed) | 24 | 24 | 24 | 24 |
Product brochure
What is a HeatView temperature controller used for?
It is used to manage complex industrial heating cycles, including preheat and post weld heat treatment, with precise control across multiple channels.
How many channels can the HeatView controller manage?
It can control up to 24 channels, either as one 24-channel console or 4 separate 6-channel consoles.
How is the HeatView controller operated?
The system can be operated through a 7” touch screen interface or via a computer connection for remote control.
Do all channels need to be connected to run?
No. The HeatView system allows flexible channel use, and it will function without all channels being connected.
Can HeatView temperature controllers be rented as well as purchased?
Yes. KASI offers HeatView digital temperature controllers for rent and sale, available across Canada from our Edmonton location.
