Product Overview
KASI supplies aluminum hydraulic hand pumps for rent and sale across Canada and Alberta. Part of the HP series, these pumps are lightweight, portable, and ideal for applications where mobility is a priority without compromising performance. Available in single or two-speed models, they come with a pre-filled oil reservoir for immediate use.
The Hi-Force manually operated aluminum hand pumps provide the same reliability as steel pumps while offering significant weight savings for easier handling and portability. Designed with a maximum working pressure of 10,000 psi, they deliver consistent hydraulic power for a wide range of industrial applications.
Key Features:
- Two-Stage Operation: Ensures faster low-pressure flow and efficient high-pressure performance.
- Maximum Working Pressure: 10,000 psi across all models.
- Lightweight Aluminum Construction: Ideal for portable and field applications.
- Model Variety: Six models available with a choice of control valves.
- Oil Reservoir Capacity: Up to 305.12 in³, pre-filled and ready to use.
- Safety Systems: External pressure release valve and factory set safety relief valve.
- Changeover Pressure: 203 psi for efficient two-speed operation.
- Compatibility: Designed for single acting hydraulic cylinders and tools.
These pumps are widely used in oil & gas, construction, mining, shipbuilding, and maintenance industries where portability and reliability are critical.

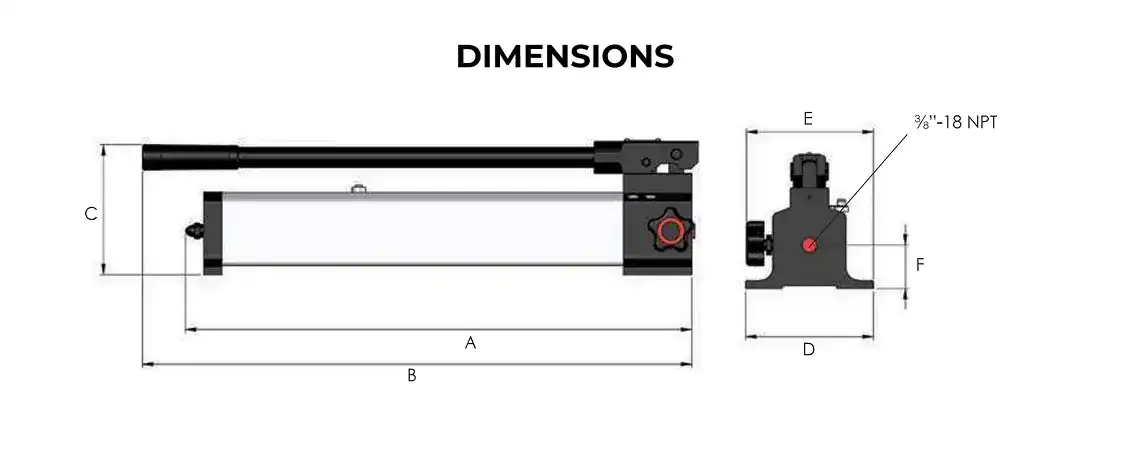

| Model number | Valve type | Displacement per stroke (in³) | Usable oil capacity (in³) | Handle effort (lbs) | Weight (lbs) | Dimensions (in) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st stage | 2nd stage | A | B | C | D | E | F | |||||
| Two stage hand operated pumps for single acting cylinders and tools | ||||||||||||
| HP211 | 2-way | 0.79 | 0.06 | 30.51 | 60 | 4.4 | 13.2 | 15.29 | 5.32 | 3.94 | 4.93 | 1.58 |
| HP212 | 2-way | 0.79 | 0.14 | 61.02 | 88 | 8.8 | 22.06 | 24.03 | 5.52 | 3.94 | 4.93 | 1.58 |
| HP232 | 2-way | 0.79 | 0.14 | 122.05 | 88 | 15.2 | 22.06 | 24.03 | 6.3 | 5.52 | 6.11 | 1.97 |
| HP252 | 2-way | 0.79 | 0.14 | 305.12 | 88 | 21.2 | 23.05 | 24.03 | 6.3 | 6.62 | 5.71 | 1.97 |
| Two stage hand operated pumps for double acting cylinders and tools | ||||||||||||
| HP232D | 4-way | 0.79 | 0.14 | 122.05 | 88 | 19.2 | 22.85 | 24.63 | 6.3 | 5.52 | 6.9 | 1.18 |
| HP252D | 4-way | 0.79 | 0.14 | 305.12 | 88 | 30.0 | 23.84 | 24.63 | 6.3 | 6.62 | 6.9 | 1.18 |
Product brochure
What are aluminum hydraulic hand pumps used for?
They are used to provide portable hydraulic power for single acting cylinders and tools, especially where weight and mobility are important.
What makes aluminum pumps different from steel pumps?
Aluminum pumps are lighter in weight, making them easier to transport, while still maintaining a 10,000 psi working pressure for industrial applications.
Do aluminum hand pumps support two-stage operation?
Yes. Many models feature two-stage operation, switching automatically at 203 psi for faster, more efficient performance.
Can aluminum hydraulic hand pumps be rented as well as purchased?
Yes. KASI offers aluminum hydraulic hand pumps for rent and sale, providing flexibility for temporary projects or permanent needs.
Are aluminum hand pumps available in Canada and Alberta?
Yes. KASI rents and sells aluminum hand pumps across Canada, with local distribution and service from Edmonton, Alberta.
