Product Overview
At KASI, we supply high tonnage double acting hydraulic cylinders for rent and sale across Canada and Alberta. These cylinders are engineered for demanding lifting and positioning applications where force is required in both extension and retraction strokes.
Hi-Force double acting high tonnage cylinders provide superior performance compared to single-acting models by applying hydraulic force in both directions. This design ensures faster operation, improved precision, and the ability to handle complex tasks in multiple industries.
Key Features:
- High Tonnage Capacity: Built to lift and move heavy industrial loads.
- Double Acting Design: Hydraulic pressure applied in both extension and retraction
- Versatility: Suitable for lifting, clamping, punching, and positioning.
- Durability: Designed for long life in demanding environments like construction, mining, and steel works.
| Model number | Capacity (tons) | Stroke (in) | Oil capacity (in³) | Cylinder eff. area (in²) | Weight (lbs) | Dimensions (in) (unless otherwise stated) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Push | Pull | A | B | C | D | E | F | G | H | I | J | |||||

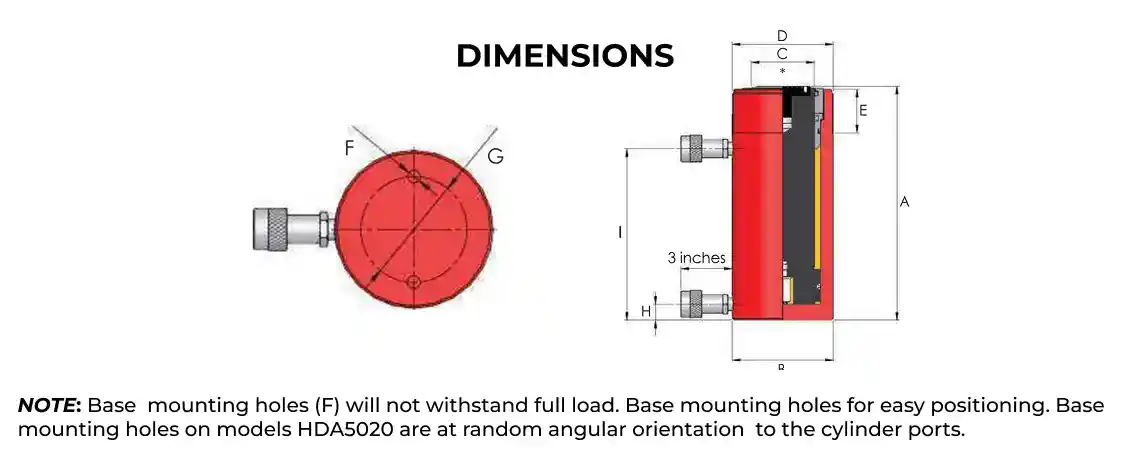

| HDA256 | 27 | 11 | 5.99 | 32.34 | 5.41 | 33.1 | 11.31 | 3.62 | 1.97 | 3 5/16″-12un | 2.09 | M10 | 2.36 | 1.18 | 8.35 | 40° |
| HDA506 | 55 | 16 | 5.99 | 65.91 | 11.05 | 62.6 | 11.62 | 5 | 3.11 | 5″-12un | 2.17 | M12 | 3.35 | 0.79 | 8.51 | 30° |
| HDA5013 | 55 | 16 | 13 | 143.41 | 11.05 | 93.9 | 18.64 | 5 | 3.11 | 5″-12un | 2.17 | M12 | 3.35 | 0.79 | 15.52 | 30° |
| HDA5020 | 55 | 16 | 20.02 | 220.91 | 11.05 | 138.4 | 28.76 | 5 | 3.11 | 5″-12un | 2.17 | M12 | 3.35 | 2.68 | 25.06 | 30° |
| HDA1006 | 120 | 40 | 5.99 | 142.18 | 23.76 | 142.2 | 11.98 | 7.01 | 4.49 | 6 7/8″-12un | 2.01 | M12 | 5.75 | 1.18 | 8.9 | 30° |
| HDA10013 | 120 | 40 | 13 | 308.78 | 23.76 | 196.2 | 18.99 | 7.01 | 4.49 | 6 7/8″-12un | 2.01 | M12 | 5.75 | 1.18 | 15.92 | 30° |
| HDA1506 | 167 | 87 | 5.99 | 198.94 | 33.2 | 198.4 | 12.21 | 8.27 | 4.49 | 8″-12un | 2.17 | M16 | 6.3 | 1.38 | 9.1 | 30° |
| HDA15012 | 167 | 87 | 12.02 | 398.48 | 33.2 | 265.7 | 18.24 | 8.27 | 4.49 | 8″-12un | 2.17 | M16 | 6.3 | 1.38 | 15.13 | 30° |
| HDA2006 | 224 | 104 | 5.99 | 364.23 | 44.21 | 286.2 | 12.88 | 10.01 | 5.52 | 9 3/4″-12un | 2.56 | M20 | 7.29 | 1.69 | 9.38 | 30° |
| HDA20012 | 224 | 104 | 12.02 | 530.3 | 44.21 | 369.1 | 18.91 | 10.01 | 5.52 | 9 3/4″-12un | 2.56 | M20 | 7.29 | 1.69 | 15.41 | 30° |
| HDA3006 | 359 | – | 5.99 | 424.11 | 70.9 | 425.5 | 16.11 | 12.29 | 6.5 | Optional | Optional | M20 | 6.23 | 1.97 | 10.32 | 30° |
| HDA4006 | 439 | – | 5.99 | 518.09 | 86.63 | 630.5 | 16.98 | 14.18 | 8.51 | Optional | Optional | M24 | 8 | 2.17 | 10.91 | 30° |
| HDA5006 | 573 | – | 5.99 | 676.75 | 113.13 | 820.1 | 18.52 | 15.64 | 8 | Optional | Optional | M24 | 8 | 2.56 | 11.82 | 30° |
| HDA8006 | 892 | – | 5.99 | 1054.49 | 175.79 | 1433.0 | 21.08 | 19.70 | 11.82 | Optional | Optional | Optional | Optional | 2.76 | 12.53 | 30° |
| HDA10006 | 1115 | – | 5.99 | 1319.33 | 220.00 | 1984.1 | 23.25 | 21.28 | 12.61 | Optional | Optional | Optional | Optional | 3.90 | 14.07 | 30° |
If specifying this cylinder for use with the SLF and SLV synchronous lifting systems and associated mounting kit, please consider the increase in dimension A (closed height).
Product brochure
What is a double acting hydraulic cylinder?
A double acting hydraulic cylinder applies hydraulic force in both extension and retraction strokes, providing greater control and efficiency than single acting cylinders.
What are high tonnage hydraulic cylinders used for?
They are used for lifting, clamping, punching, and positioning heavy loads in industries such as construction, mining, and shipbuilding.
What industries use double acting cylinders?
They are widely used in power generation, oil & gas, steel works, railways, mining, and heavy construction.
Can high tonnage hydraulic cylinders be rented as well as purchased?
Yes. KASI offers double acting hydraulic cylinders for rent and sale, providing flexibility for both temporary and long-term projects.
Are high tonnage hydraulic cylinders available in Canada and Alberta?
Yes. KASI supplies high tonnage double acting hydraulic cylinders across Canada, with localized service and support from Edmonton, Alberta.
