Product Overview
KASI supplies single acting aluminum hydraulic cylinders for rent and sale across Canada and Alberta. Lightweight yet durable, these cylinders are designed for applications where weight and portability are critical, without sacrificing performance or reliability.
These single acting aluminum cylinders from Hi-Force combine portability with industrial strength, making them ideal for field use in industries such as oil & gas, construction, power generation, and mining. The spring-assisted return design ensures quick retraction, while the aluminum body reduces overall weight for easier handling and transportation.
Key Features:
- Lightweight Aluminum Construction – Easy to transport and ideal for portable applications.
- Single Acting, Spring Assisted Return – Reliable retraction for efficient operation.
- Hard Anodized Piston Rod & Cylinder – Provides excellent corrosion resistance and extended service life.
- Low Friction Bearing Surfaces – Enhances performance and smooth operation.
- Anti-Extrusion Seals – Maintains performance under high pressure.
- Grooved Saddles (Standard) – Fitted to all models for load stability.
- Optional Piston Rod Saddles – Available for specific application needs.
These cylinders are designed for demanding environments while remaining lightweight enough for portable use.

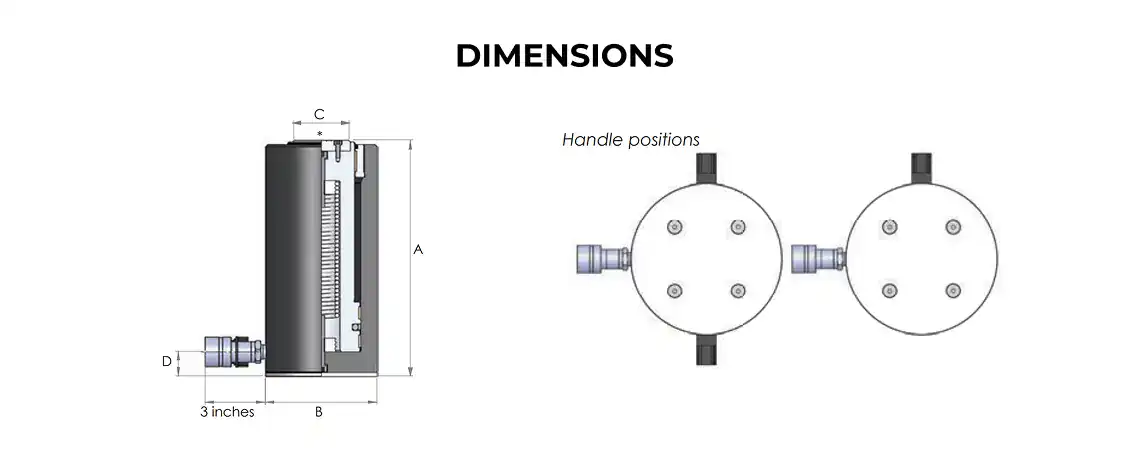

| Model number | Capacity (tons) | Stroke (in) | Oil capacity (in³) | Cylinder eff. area (in²) | Weight (lbs) | Handles | Dimensions (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||||
| HAS302 | 35 | 2.01 | 13.73 | 6.85 | 8.8 | – | 7.13 | 4.14 | 1.97 | 0.99 |
| HAS306 | 35 | 5.99 | 40.99 | 6.85 | 13.2 | – | 11.11 | 4.14 | 1.97 | 0.99 |
| HAS3012 | 35 | 12.02 | 82.23 | 6.85 | 17.6 | 1 | 17.14 | 4.14 | 1.97 | 0.99 |
| HAS502 | 56 | 2.01 | 69.3 | 10.99 | 17.6 | 1 | 7.33 | 5.32 | 2.76 | 1.18 |
| HAS506 | 56 | 5.99 | 65.7 | 10.99 | 24.3 | 1 | 11.31 | 5.32 | 2.76 | 1.18 |
| HAS5012 | 56 | 12.02 | 131.88 | 10.99 | 35.3 | 1 | 17.34 | 5.32 | 2.76 | 1.18 |
| HAS1002 | 121 | 2.01 | 47.89 | 23.85 | 41.9 | 2 | 8.51 | 7.68 | 3.94 | 1.62 |
| HAS1006 | 121 | 5.99 | 142.74 | 23.85 | 50.7 | 2 | 12.49 | 7.68 | 3.94 | 1.62 |
| HAS10012 | 121 | 12.02 | 286.4 | 23.85 | 75.0 | 2 | 18.52 | 7.68 | 3.94 | 1.62 |
Product brochure
What are single acting aluminum hydraulic cylinders used for?
They are used in applications where lightweight and portable lifting or force application is required, such as construction, mining, and maintenance projects.
What makes aluminum cylinders different from steel cylinders?
Aluminum cylinders are lighter in weight, making them easier to transport and handle in the field, while still providing strong, durable performance.
Are these cylinders resistant to corrosion?
Yes. The hard anodized piston rod and cylinder provide excellent corrosion resistance, extending the cylinder’s service life.
Can these cylinders be rented as well as purchased?
Yes. KASI offers single acting aluminum cylinders for both rent and sale, giving customers flexibility for short-term or permanent needs.
Are single acting aluminum hydraulic cylinders available in Canada and Alberta?
Yes. KASI supplies aluminum single acting hydraulic cylinders across Canada, with local service and support from Edmonton, Alberta.
