Product Overview

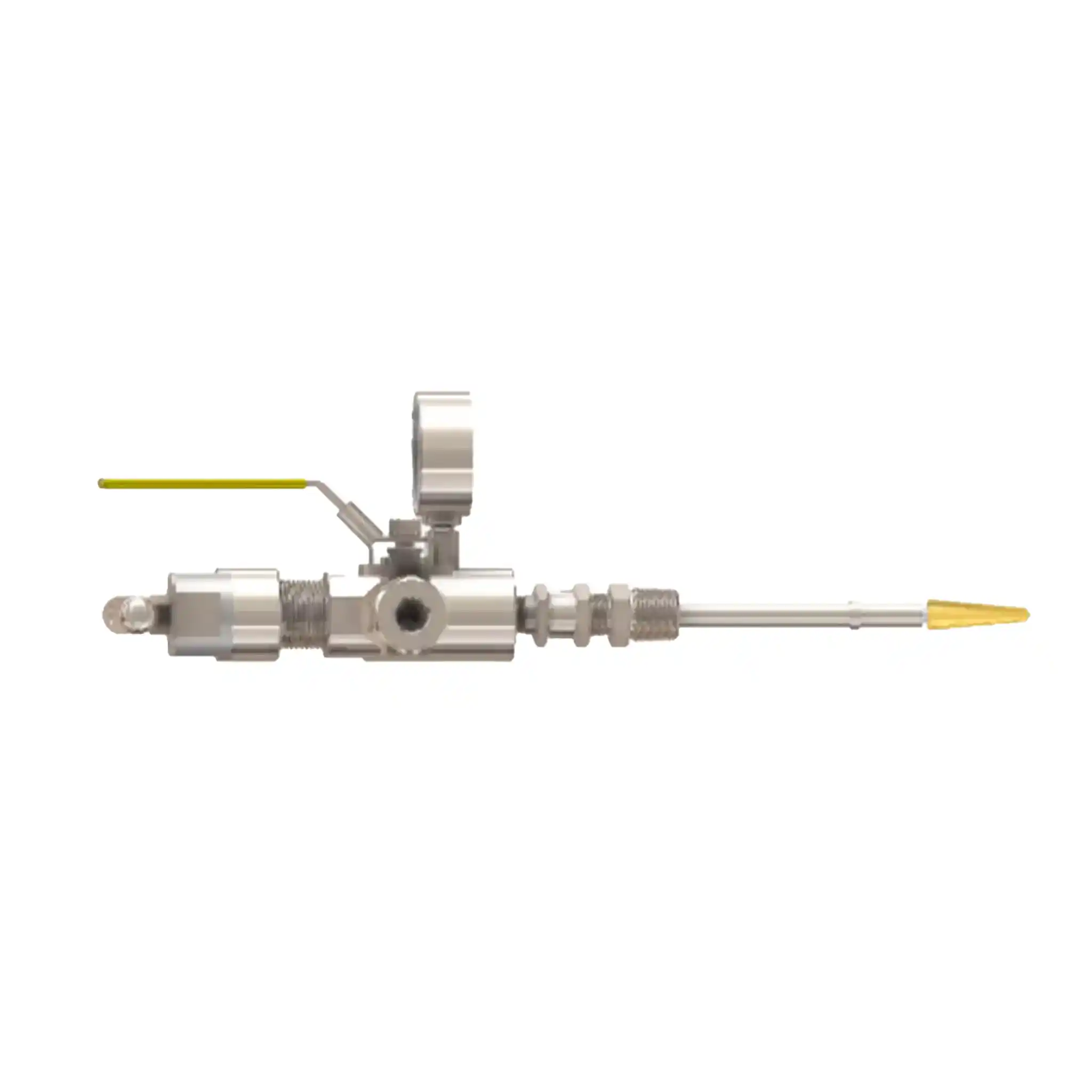

The Rod Out Tool / Bleeder Cleaner provides a safe and efficient solution for clearing clogged bleeder valves, vents, drains, and instrument taps during normal plant operations. Designed to fully contain the process media while cleaning, the tool helps eliminate hazardous product releases and minimizes personnel exposure to unsafe conditions.
Also known as rod-out devices, orifice tap cleaners, or tap reamers, these tools are essential for maintenance teams working in refineries, petrochemical plants, and industrial processing facilities.
The Rod Out Tool / Bleeder Cleaner, manufactured by USA Industries, is specifically designed to safely remove blockages from bleeder valves, vents, drains, and instrument taps without interrupting normal operations.
Traditional cleaning methods can expose personnel to hazardous process fluids, vapors, and pressure. The Rod Out Tool fully contains the product during the cleaning process, significantly reducing the risk of dangerous exposure, vapor releases, explosions, and fires.
Engineered for reliability and operator safety, the tool enables maintenance teams to perform routine and corrective cleaning operations while maintaining plant integrity and minimizing downtime.
Key features include:
- Safely clears clogged bleeder valves, vents, drains, and instrument taps
- Fully contains process media during operation
- Reduces the risk of hazardous product releases
- Helps prevent personnel exposure to pressure and vapors
- Suitable for routine and corrective maintenance applications
- Designed for use during normal plant operations
- Improves maintenance efficiency and plant safety
Hazard Prevention:
The Rod Out Tool is designed to safely remove blockages without exposing personnel to process media, pressure, or hazardous vapors, helping prevent:
- Dangerous product releases
- Operator exposure
- Vapor emissions
- Explosions
- Fires
Applications:
Common applications include:
- Bleeder valves
- Vent valves
- Drain valves
- Instrument taps
- Orifice taps
- Process connections
- Refinery and petrochemical maintenance
| Specification | Details |
|---|---|
| SHAFT CONFIGURATION TYPES | 90° • 135° • Straight • Flexible |
| BIT TYPES | Everlast • Twist |
| COMMON TWIST BIT SIZES | 1/4″ • 5/16″ • 3/8″ • 7/16″ • 1/2″ • 3/4″ (custom sizes available) |
| COMMON COUPLING SIZES | 1/2″ • 3/4″ • 1″ • 1-1/4″ • 1-1/2″ • 1-3/4″ • 2″ (custom sizes available) |
| STANDARD SHAFT LENGTH | 14″ (longer shafts available upon request) |
| TEMPERATURE & PRESSURE RATINGS | Up to 1,000°F & 1,000 PSIG respectively |
Line sheet
Instruction manual
What is a Rod Out Tool (Bleeder Cleaner)?
A Rod Out Tool is a maintenance device used to safely clear blockages from bleeder valves, vents, drains, and instrument taps while containing the process media.
Can the tool be used while the system is operating?
Yes. The Rod Out Tool is specifically designed for use during normal plant operations, allowing maintenance personnel to clear blockages without shutting down the system.
What hazards does the Rod Out Tool help prevent?
When used correctly, the tool helps prevent product releases, vapor emissions, operator exposure, explosions, and fires.
Where is the Rod Out Tool commonly used?
It is commonly used in refineries, petrochemical plants, industrial processing facilities, and other environments where valves and instrument taps may become clogged.
Can I rent, purchase or lease Rod Out Tool anywhere in Canada?
Yes, KASI offers rental, sales, and leasing options for the Rod Out Tool across Canada. From our locations in Sherwood Park and Fort McMurray, Alberta, we ship equipment nationwide, including British Columbia, Saskatchewan, Manitoba, Ontario, Quebec, New Brunswick, Nova Scotia, Prince Edward Island, and Newfoundland and Labrador. We also support customers across North America, with reliable delivery to industrial facilities, fabrication shops, and project sites.
