Product Overview
KASI supplies Hi-Force two-stage electric driven compact pumps across Canada, delivering reliable hydraulic power for torque wrenches and other industrial applications. Available in both 110V and 240V single-phase electric motor options, these pumps are built for versatility, portability, and consistent performance.
The Hi-Force two-stage electric hydraulic torque wrench pumps are engineered for a wide variety of bolting and hydraulic applications. Compact and easy to transport, these pumps provide the ideal power solution for electric hydraulic torque wrenches, offering smooth, efficient operation and long service life.
Key advantages include:
- Two-Stage Design: Ensures fast advance and controlled operation under load.
- Voltage Options: Available with 110V or 240V single-phase electric motors for flexibility in different working environments.
- Compact & Portable: Lightweight design makes transportation and on-site use simple.
- Wide Application Range: Suitable for torque wrenches, cylinders, and general hydraulic tools.
These pumps are designed to deliver reliable performance even in tough environments, making them an excellent choice for oil & gas, power generation, mining, and heavy manufacturing industries across Canada.

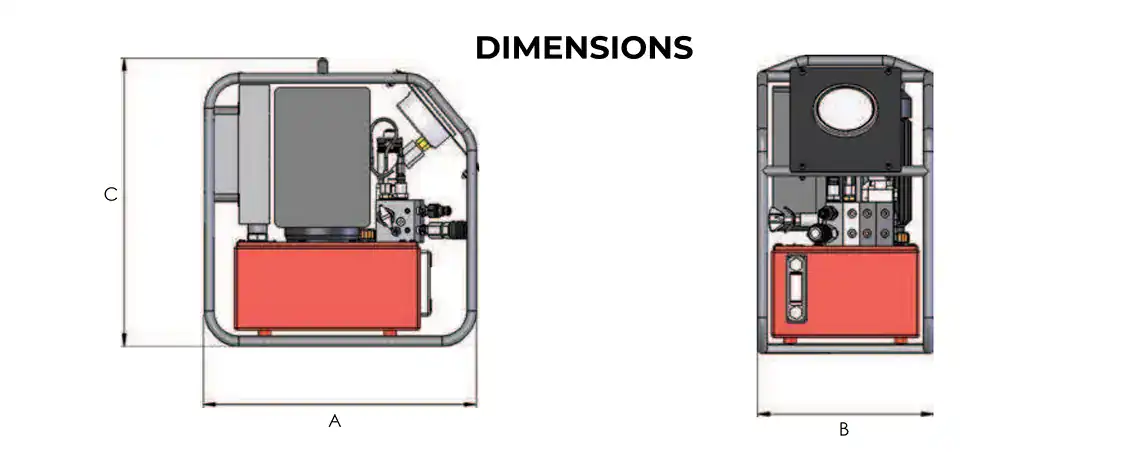

| Model number | Power supply | Pressure gauge | Gauge reading* | Flow rate (gallons/min) | Oil capacity (gallons) | Max. oil temp (°C) | Weight incl. oil (lbs) | Dimensions (in) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st stage (0–943 psi) | 2nd stage (943–4,713 psi) | 3rd stage (4,713–10,000 psi) | A | B | C | |||||||
| TPE15A | 110V-1Ph-50 Hz | analog | psi/bar | 6.5 | 1.5 | 0.75 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE15D | 110V-1Ph-50 Hz | digital | psi/bar/Nm/lbf.ft | 6.5 | 1.5 | 0.75 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE16A | 120V-1Ph-60 Hz | analog | psi/bar | 7.8 | 1.8 | 0.90 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE16D | 120V-1Ph-60 Hz | digital | psi/bar/Nm/lbf.ft | 7.8 | 1.8 | 0.90 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE25A | 230V-1Ph-50 Hz | analog | psi/bar | 6.5 | 1.5 | 0.75 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE25D | 230V-1Ph-50 Hz | digital | psi/bar/Nm/lbf.ft | 6.5 | 1.5 | 0.75 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE26A | 230V-1Ph-60 Hz | analog | psi/bar | 7.8 | 1.8 | 0.90 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE26D | 230V-1Ph-60 Hz | digital | psi/bar/Nm/lbf.ft | 7.8 | 1.8 | 0.90 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE45A | 400V-3Ph-50 Hz | analog | psi/bar | 6.5 | 1.5 | 0.75 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE45D | 400V-3Ph-50 Hz | digital | psi/bar/Nm/lbf.ft | 6.5 | 1.5 | 0.75 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE46A | 480V-3Ph-60 Hz | analog | psi/bar | 7.8 | 1.8 | 0.90 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| TPE46D | 480V-3Ph-60 Hz | digital | psi/bar/Nm/lbf.ft | 7.8 | 1.8 | 0.90 | 1.85 | 80° | 86.0 | 17.97 | 11.27 | 18.75 |
| Model number | Description |
|---|---|
| TP-CS1 | Single set of male/female flat face couplers, for simultaneous operation of two hydraulic wrenches |
| TP-CS2 | Double set of male/female flat face couplers, for simultaneous operation of three hydraulic wrenches |
| TP-CS3 | Triple set of male/female flat face couplers, for simultaneous operation of four hydraulic wrenches |
Product brochure
What is an electric hydraulic torque wrench pump?
It is a compact, electric-driven pump designed to power hydraulic torque wrenches and other hydraulic tools with reliable, high-pressure output.
What makes a two-stage pump different?
A two-stage pump offers fast advance and controlled pressure under load, providing both efficiency and precision during hydraulic operations.
What voltage options are available for Hi-Force compact pumps?
These pumps are available in 110V and 240V single-phase electric motor options, making them suitable for various jobsite requirements.
What industries use electric hydraulic torque wrench pumps?
They are commonly used in oil & gas, mining, power generation, petrochemical, and heavy equipment industries for torque wrenches and hydraulic tool operations.
Are electric hydraulic torque wrench pumps available in Canada and Alberta?
Yes. KASI supplies Hi-Force two-stage compact pumps across Canada, with localized distribution and service from Edmonton, Alberta.
