Product Overview

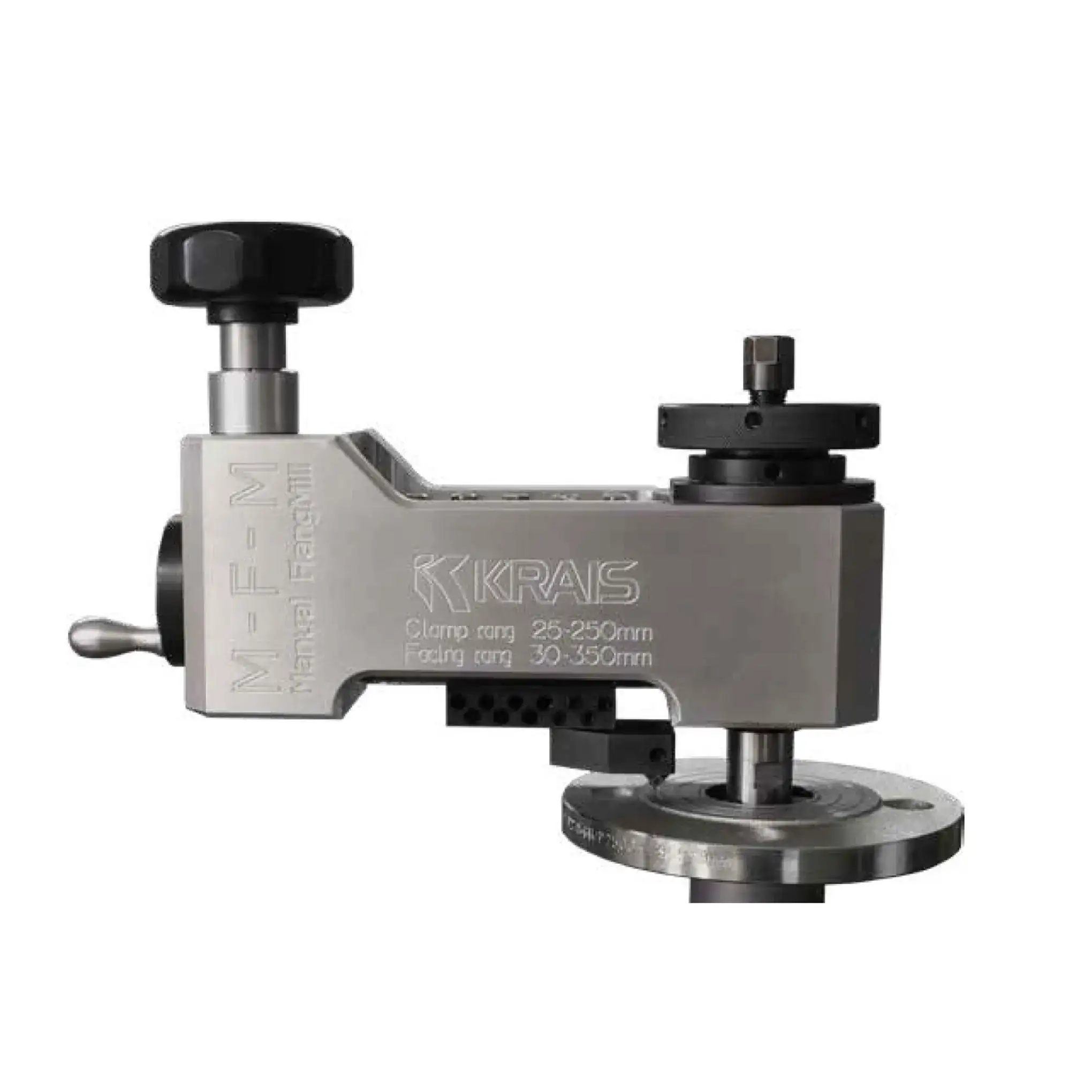

The Manual Flange Mill (MFM) is a portable, ID-mounted flange facing machine designed for fast, accurate, and cost-effective on-site resurfacing of damaged flange faces. Its lightweight construction and manual operation make it ideal for maintenance work in confined, elevated, or hazardous locations where powered equipment may not be practical.
Using a precision worm-gear drive, the Manual Flange Mill delivers a consistent spiral surface finish while allowing operators to machine flat, raised-face, and grooved flanges with excellent accuracy.
The KRAIS Manual Flange Mill is engineered to restore damaged flange sealing surfaces without removing the flange from the pipeline. Its internal diameter mounting system provides excellent stability during machining, ensuring precise resurfacing and improved flange sealing performance.
The machine features a manually operated worm-gear mechanism that produces a smooth spiral finish while offering excellent control throughout the machining process. A precision spindle provides fine depth adjustment, allowing operators to accurately control the cutting depth for high-quality surface finishes.
Designed for portability and ease of use, the Manual Flange Mill is suitable for field maintenance in refineries, petrochemical plants, power stations, offshore platforms, shipyards, and general industrial facilities.

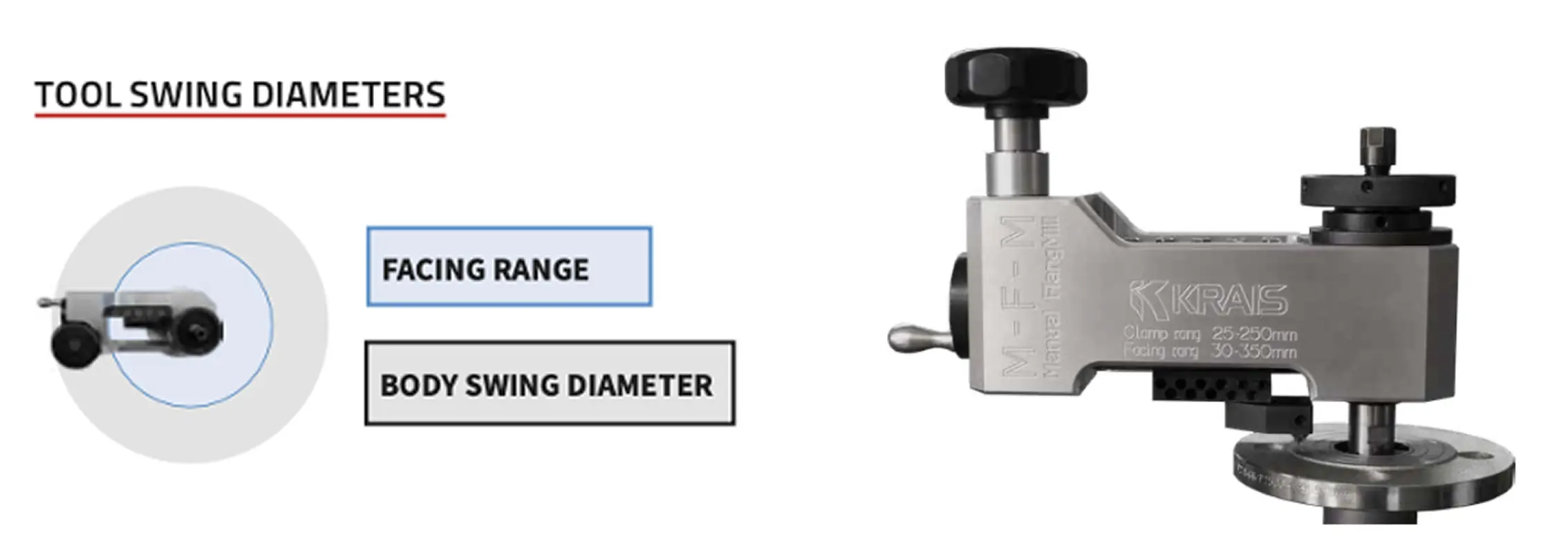

| Drive | Facing Range [inch] | Locking Range [inch] | Max V Tool Travel [inch] | Max H Tool Travel [inch] | Body Swing Diameter [inch] | Body Width [inch] | Body Length [inch] | Body Weight [lbs] | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | |||||||
| Manual | 1.750″ | 14.000″ | 1″ | 10″ | 0.395″ | 2.165″ | 18″ | 6.5″ | 12.8″ | 19.4 |
Product brochure
What is the Manual Flange Mill used for?
The Manual Flange Mill is designed to repair damaged flange sealing surfaces by resurfacing flat, raised-face, and grooved flanges directly on-site without removing the flange from the pipeline.
What flange sizes can it machine?
The machine can face flanges ranging from 1.750 inches to 14.000 inches in diameter and mounts internally on diameters from 1 inch to 10 inches.
Does the machine require electricity or compressed air?
No. The Manual Flange Mill is completely manually operated, making it ideal for remote locations or areas where power sources are unavailable.
What type of surface finish does it produce?
The worm-gear drive mechanism creates a smooth, consistent spiral finish suitable for achieving reliable gasket sealing surfaces.
Can I rent, purchase or lease Manual Flange Mill (MFM) anywhere in Canada?
Yes, KASI offers rental, sales, and leasing options for the Manual Flange Mill (MFM) across Canada. From our locations in Sherwood Park and Fort McMurray, Alberta, we ship equipment nationwide, including British Columbia, Saskatchewan, Manitoba, Ontario, Quebec, New Brunswick, Nova Scotia, Prince Edward Island, and Newfoundland and Labrador. We also support customers across North America, with reliable delivery to industrial facilities, fabrication shops, and project sites.
