Product Overview

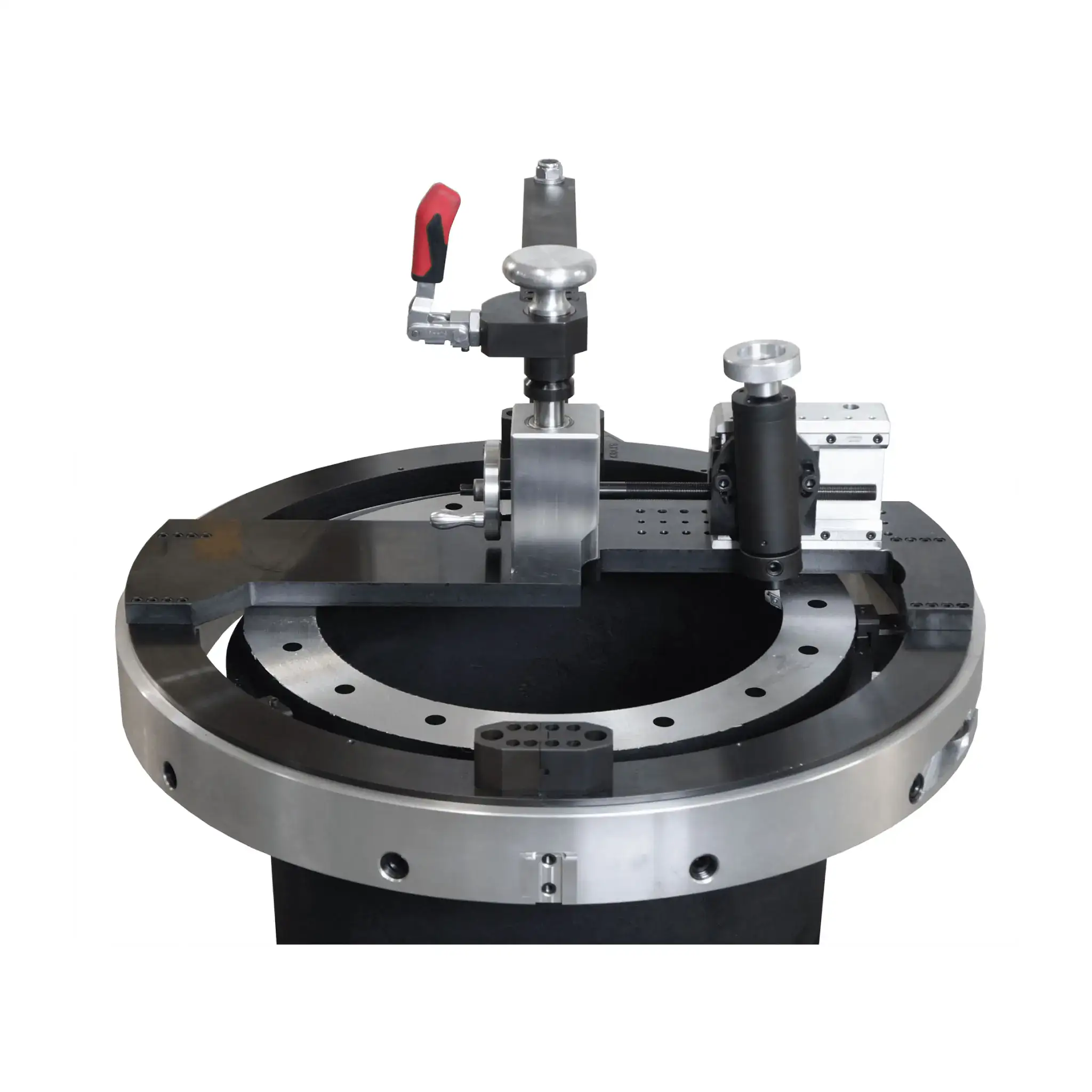

KASI supplies OD Mount Flange Facers for rent and sale across Canada and Alberta. These machines mount securely on the outside diameter of a flange, offering flexible setup options including mounting on top, around, or even behind the flange. For surface machining without a flange, some models can also be fixed through existing bolt holes, providing versatile solutions for on-site machining.
OD mounted flange facers are designed for machining sealing surfaces, flange faces, weld preps, and repairs with maximum efficiency. Covering a wide size range of 10 mm to 600 mm (0.39” – 23.6”), they are suitable for small to large diameter flanges.
Thanks to their lightweight yet rigid construction, OD flange facers can be handled and set up by a single operator, without the need for cranes or heavy lifting equipment. Their compact profile and minimum height of 150 mm (5.9”) allows the machine to slide into tight spaces, for example, between two flanges when replacing a valve, making them highly practical for field use.
Key Features:
- Mounting Options: Outside diameter, on top, around, or behind the flange.
- Bolt Hole Setup: Some models mount using bolt holes when no flange surface is available.
- Size Range: Machines cover 10 mm to 600 mm (0.39” – 23.6”).
- Compact Design: Minimum machine height of 150 mm (5.9”) for tight access applications.
- Ease of Use: Lightweight design allows one-person setup and operation.
- Power Options: Available with air, electric, or hydraulic motors.
What is an OD mount flange facer used for?
An OD mount flange facer is used for machining flange faces, sealing surfaces, weld preparations, and repairs, mounted on the outside diameter of the flange.
What size flanges can OD flange facers handle?
They are designed to cover flange diameters from 10 mm to 600 mm (0.39” – 23.6”), suitable for a wide range of applications.
How are OD flange facers powered?
They are available with air, electric, or hydraulic drive motors, depending on site requirements.
Can OD flange facers be used in tight spaces?
Yes. With a minimum height of 150 mm (5.9”), they can be slid into narrow gaps, such as between flanges during valve replacements.
Can OD flange facers be rented as well as purchased?
Yes. KASI offers OD mount flange facers for rent and sale, with fast delivery and support across Canada and Alberta.
