Mag Drills

Mag Drills for sale and rental in Canada by KASI Technologies

Product Overview

Explore KASI’s market-leading range of magnetic drilling machines. Also known as mag drills, these portable metal-cutting tools are designed to drill holes in tough metals while remaining lightweight and easy to transport.

Ideal for metalwork fabrication, framework assembly, and civil engineering projects, mag drills combine power, portability, and precision in one compact machine.

Description

Specifications

Resources

FAQ

A mag drill is a versatile and user-friendly tool built for on-site drilling applications. With their powerful magnetic base, mag drills can be attached securely to almost any ferrous surface, allowing operators to perform quick setups and powerful drilling with confidence.

KASI offers a wide selection of mag drills for rent and sale, including:

  • Lightweight electric mag drills for portability and everyday tasks.
  • Heavy-duty pneumatic mag drills for demanding industrial applications.
  • Advanced magnetic drills with diagnostic features for improved safety and productivity.

Whether you’re working in the shop or in the field, mag drills ensure faster, safer, and more accurate hole-making compared to traditional drilling methods.

Dual Magnet Drill

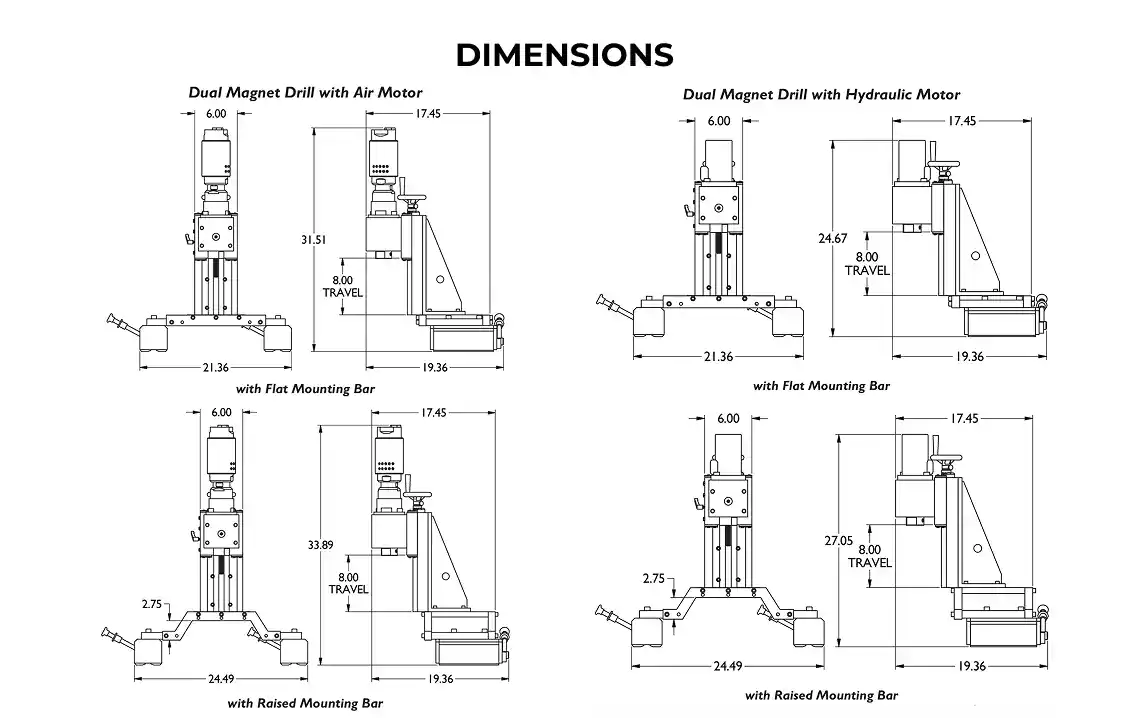

Mag drills dimensions
ItemValue
General Specifications
Drill CapacityUp to 8 in (203 mm) diameter holes
Tool Shank1 in straight quill (standard)
Tool Travel8 in (203 mm)
Mounting OptionsFlat or curved surfaces; flat or raised mounting bar options
Maximum Magnet Holding Capacity2200 lb (998 kg) flat surface; 1100 lb (499 kg) curved surface — attaches to any clean ferrous surface
Operating Weight
Air motor, raised mounting bar211 lb (96 kg)
Air motor, flat mounting bar213 lb (97 kg)
Hydraulic motor, raised mounting bar203 lb (92 kg)
Hydraulic motor, flat mounting bar201 lb (91 kg)
Drive Motor — Air
Port1/2 NPTF
Maximum Output3.84 hp (2.86 kW)
Speed at Maximum Output87 rpm
Torque at Maximum Output231 ft·lb (314 N·m)
Minimum Starting Torque347 ft·lb (471 N·m)
Free Speed174 rpm
Air Consumption @ Max Output116 cfm (55 L/s)
Air Supply Requirements91 psi (6.3 bar)
AccessoryAir caddy (filter & oiler) included
Drive Motor — Hydraulic
Ports1/2 NPTF
Maximum Continuous Pressure1650 psi (114 bar)
Maximum Continuous Speed353 rpm
Maximum Continuous Torque2059 in·lb (233 N·m)
Maximum Continuous Flow15 gpm (57 L/min)
Power Supply Requirements2–15 gpm (8–57 L/min), 1500 psi (103 bar)

Magnetic drill

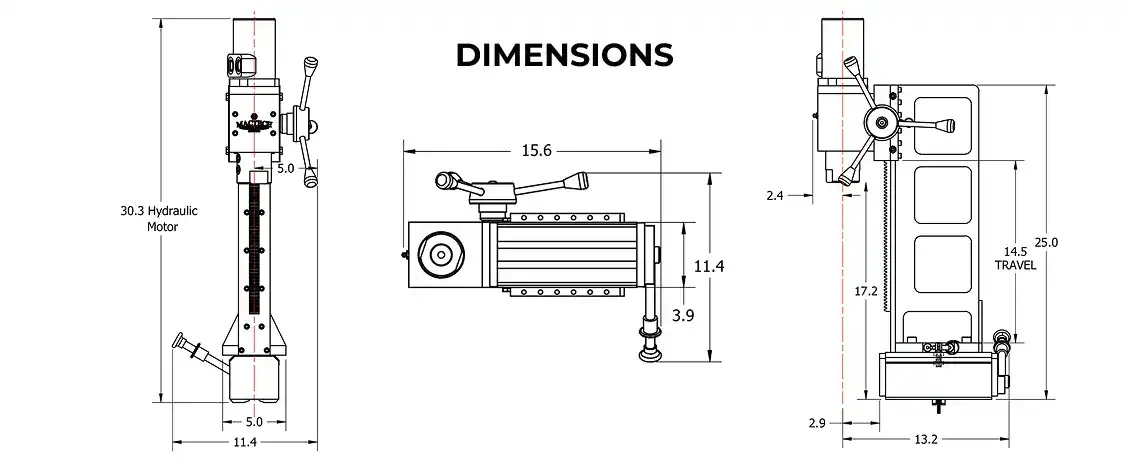

Portable magnetic milling machine dimensions
DrivesPowerSpindle speedTorque
Air drive: in-line, reversible
* 605-68571.6 HP / 1200w107rpm @ Max Power, 227rpm Free Speed85FtLbs / 115 Nm @ Max Power
Air drive: right angle, reversible
* 605-68581.6 HP / 1200w107rpm @ Max Power, 227rpm Free Speed85FtLbs / 115 Nm @ Max Power
Hydraulic drive: in-line
600-67693.4 HP @ 8 GPM / 1000psi127rpm – 913rpm, 500rpm @ 8gpm35 ft-lbs @ 1000psi, 66FtLbs @ 1800psi
Electric drive: 20 AMP, 110VAC reversible
600-68553hp4 Speed Gearbox / 80-570rpm, w/ Speed Dial203 ft-lbs / 276 Nm @ 80rpm
Electric drive: 10 AMP, 220VAC reversible
600-68563hp4 Speed Gearbox / 80-570rpm, w/ Speed Dial203 ft-lbs / 276 Nm @ 80rpm
* Air motors require 74 cfm @ 87 psi air supply (2.1 m³/min @ 6 bar).
MD414 Dimensions
ItemHeightWeight
Drill Base25in / 63.5cm81.45 lbs / 37kg
Height & weight with drive
Air Drive: In-line40.5in / 1m101.5 lbs / 46kg
Air Drive: RA31in / 78.7cm101.5 lbs / 46kg
Hydraulic Drive30.3in / 77cm93 lbs / 42kg
Electric Drives43.6in / 1.1m103.5 lbs / 47kg

Dual Magnetic Drill

Download PDF cover visual

Magnetic drill

Download PDF cover visual
Loader image

A mag drill is a portable drilling machine with a magnetic base that attaches securely to ferrous surfaces for stable, accurate hole-cutting in tough metals.

They are commonly used for metal fabrication, framework assembly, civil engineering, and on-site drilling in steel structures.

Mag drills use an electromagnetic base that creates a strong hold on ferrous surfaces, allowing safe and stable drilling.

Yes. KASI offers different range of mag drills for industrial applications.

Yes. KASI provides mag drills for rent and sale, with fast delivery across Canada and Alberta.
